0606 PLCC RGB

2 days ago
2 min read

The 0606 PLCC RGB is a unique addition to QTB's expanding portfolio of RGB LED's. This Plastic Leaded Chip Carrier (PLCC) package is specifically designed to minimize side light leakage and direct more RGB output toward the intended viewing direction. As a result, the 0606 PLCC RGB is 2X to 4X brighter than conventional 0606 chipLED while maintaining the same compact 0606 footprint. This package is available in a black housing for enhanced contrast and definition and in a white housing for maximum optical performance. With the higher and improved luminous intensity, the 0606 PLCC RGB enables designers to extend the use of RGB LEDs into brighter ambient and daylight viewing conditions.

0606 PLCC vs 0606 ChipLED

Units are in mm.

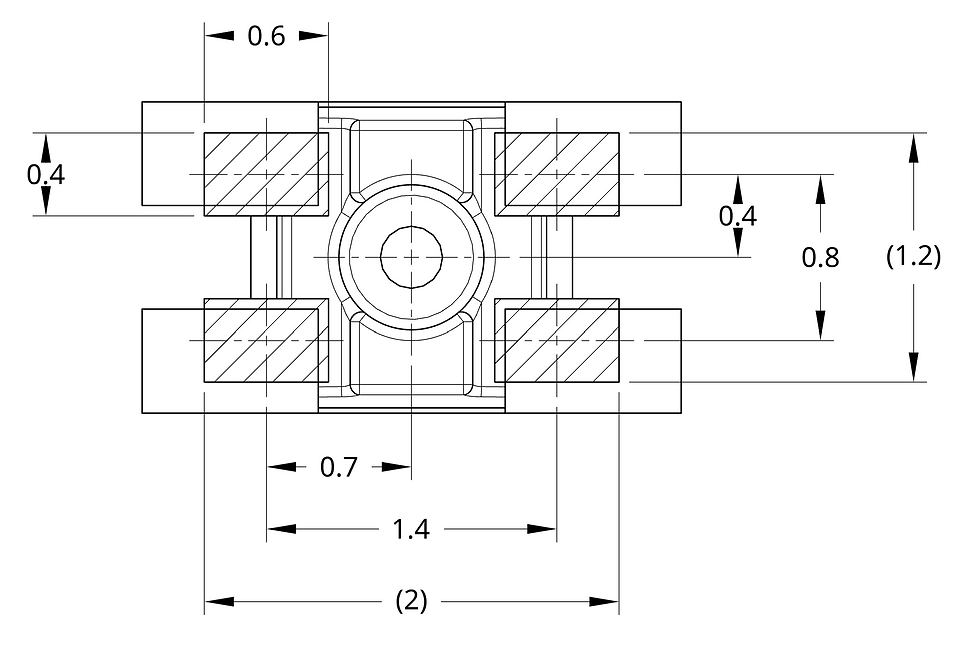

0606 PLCC footprint compatible with 0606 ChipLED footprint

PLCC footprint is hatched. ChipLED footprint is not hatched. Units are in mm.

Applications

Status Indicators
Backlighting
Signage & Message Boards
Consumer Electronics and Smart Devices
Architectural & Decorative Lighting

Product Features:

Industry standard 0606 footprint
High-bright and mid-bright options
120 degree view angle
Surface Mount Device (SMD)

Electrical and Optical Outputs

Mfr Part #	Housing	Color	Wavelength - Dominant	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ)
QBLP1515AB-RGB2A	Black	Red, Green, Blue (RGB)	622nm Red, 524nm Green, 468nm Blue	168mcd Red, 390mcd Green, 90mcd Blue	10mA Red, 10mA Green, 10mA Blue	2V Red, 2.8V Green, 2.8V Blue
QBLP1515A-RGB2A	White	Red, Green, Blue (RGB)	622nm Red, 528nm Green, 468nm Blue	360mcd Red, 900mcd Green, 210mcd Blue	10mA Red, 10mA Green, 10mA Blue	2V Red, 2.8V Green, 2.8V Blue
QBLP1515AB-RGB2	Black	Red, Green, Blue (RGB)	620nm Red, 525nm Green, 467nm Blue	360mcd Red, 600mcd Green, 120mcd Blue	20mA Red, 20mA Green, 20mA Blue	2V Red, 3V Green, 3V Blue
QBLP1515A-RGB2	White	Red, Green, Blue (RGB)	620nm Red, 525nm Green, 467nm Blue	700mcd Red, 1200mcd Green, 350mcd Blue	20mA Red, 20mA Green, 20mA Blue	2V Red, 3V Green, 3V Blue
