3528 HBX Series
- 12 hours ago
- 1 min read
The new 3528 HBX (High Brightness Expanded) Series delivers a full range of enhanced color and brightness options in the proven SMD PLCC-4 package. Available in blue, white, green, yellow (amber), orange, and red, with both flat and dome lens configurations, the HBX Series is designed for high-visibility applications, including daylight environments, signage, and situations requring intense indication.
Applications
Status Indication - in daylight environments
power status
system diagnostics
operator interface
warning
equipment identification
Backlighting
Interface Type
direct mount
panel mount
pilot lights
light pipes
Product Features
Industry standard 3528 PLCC-4 footprint
Surface mount device
High bright options in 30mA and 50mA
Flat and dome lens options
Electrical and Optical Outputs

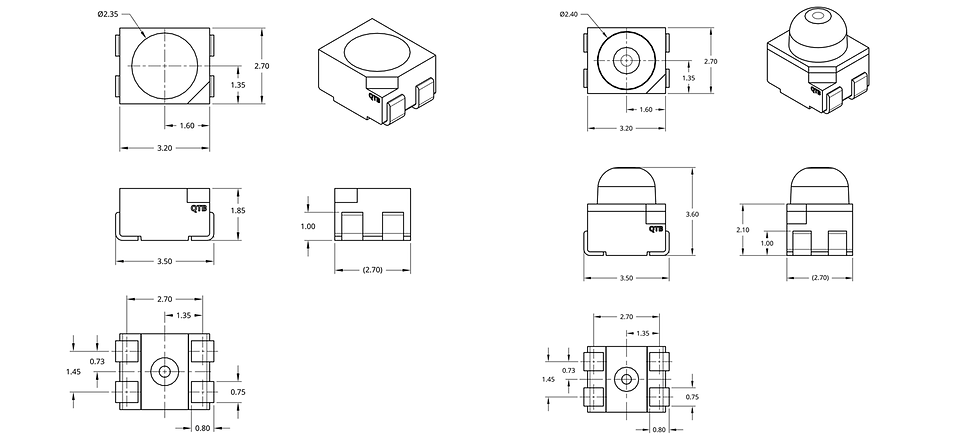

Mechanical Dimension Drawing
Units are in mm.
Datasheet & Purchase Link
QBLP677AD-IBD-2897 | ||
QBLP677BD-IBD-2897 | ||
QBLP677A-IBD-2897 | ||
QBLP677AD-IBM | ||
QBLP677AD-IGD | ||
QBLP677BD-IGD | ||
QBLP677AD-IGM | ||
QBLP677A-IGD | ||
QBLP677A-IGM-2897 | ||
QBLP677AD-IWD-2897 | ||
QBLP677A-IWD-2897 | ||
QBLP677AD-YD-2897 | ||
QBLP677BD-YD-2897 | ||
QBLP677AD-YD | ||
QBLP677A-YD | ||
QBLP677AD-OD | ||
QBLP677A-OD | ||
QBLP677BD-RD-2897 | ||
QBLP677AD-RD | ||
QBLP677B-RD-2897 | ||
QBLP677A-RD |
